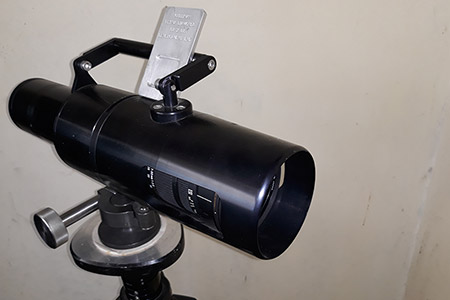

Kwik-Miner (Combo)

A Multifunctional Product

1. Changed the wide angled lens to accommodate tunnels of up to 48 square meters.

2. Changed from halogen light to LED light.

3. Changed from external battery pack to internal re-chargeable battery pack.

Enhancement: New light enhancement with LED technology

Improvement: From 2½ hours to 4 hours continuous burning

USES FEATURES
Accurate Marking off of tunnels underground Saves money by reducing over break by up to 30%
Indicating Direction & Grade Lines in tunnels with laser Accurate to within .01 degree
Turning off tunnels, cross-cuts etc. using digital protractor & laser Reduces marking off time by 80%
Indicating incline & declines in degrees using digital inclinometer Safety device using 3 different coloured lenses eg, Red, Green & Yellow
Marks off tunnels ranging from 3 x 3m to 10 x 10m System is Precision Calibrated & easy to use
A light source for underground when other lights have exceeded battery life One Man Operation, hand portable & a self-contained unit



Cullinan Diamond Mine and Wessels Mine visit - October 2013

Click on thumbnails to see larger image

Highslide JS

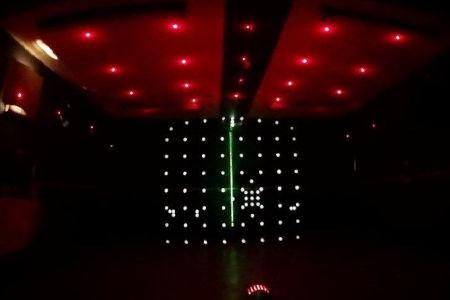

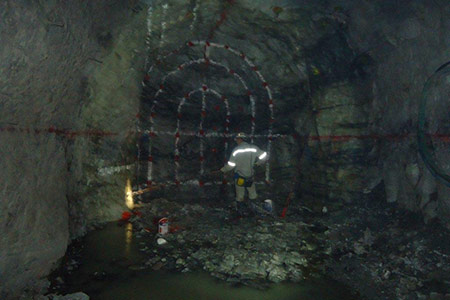

Drill Pattern Projection on Rock Face

Drill Pattern Projection on Rock Face

Highslide JS

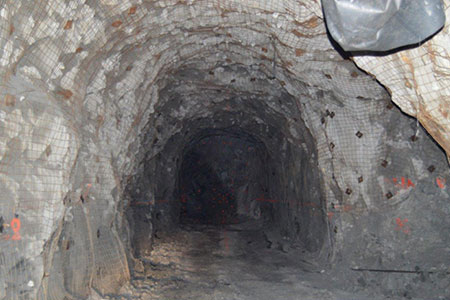

Direction & Grade Lines indicated with White Paint

Direction & Grade Lines indicated with White Paint

Highslide JS

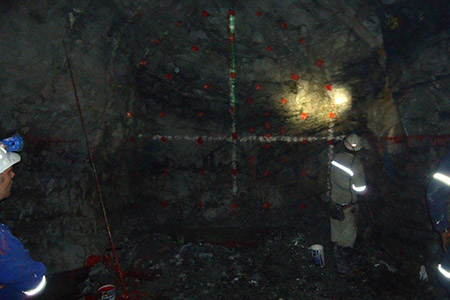

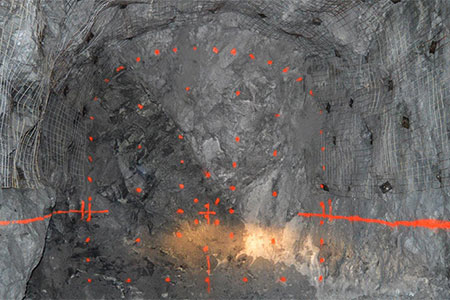

Busy marking off with Red Dots

Busy marking off with Red Dots

Highslide JS

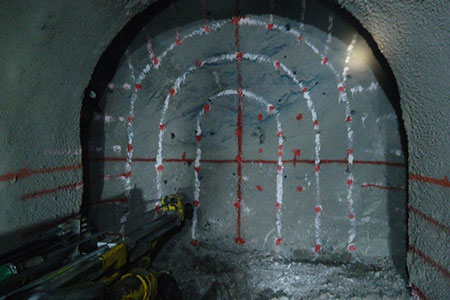

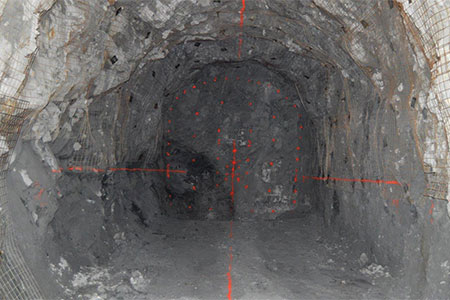

The marking off of Rock Face complete

The marking off of Rock Face complete

Highslide JS
Preparing to Paint White Lines between Red Dots

Preparing to Paint White Lines between Red Dots

Highslide JS

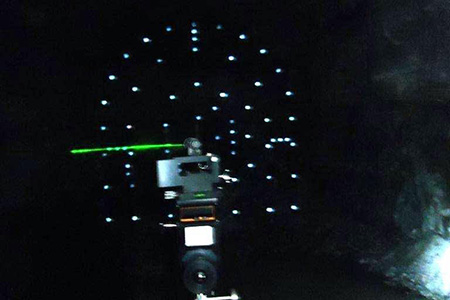

Joined White Lines complete, showing Green Lazer Direction Line

Joined White Lines complete, showing Green Lazer Direction Line

Highslide JS
Combo projector in Foreground with Marked Pattern complete

Combo projector in Foreground with Marked Pattern complete

Highslide JS
Completing marking off of Direction Lines on Side and Hanging Wall

Completing marking off of Direction Lines on Side and Hanging Wall

Highslide JS
Grade Line indicated with Green Lazer

Grade Line indicated with Green Lazer

Highslide JS
Final step before Rig starts to drill

Final step before Rig starts to drill

Highslide JS
Mine Captain with his Team

Mine Captain with his Team

Highslide JS

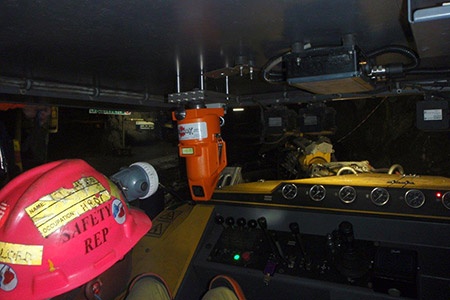

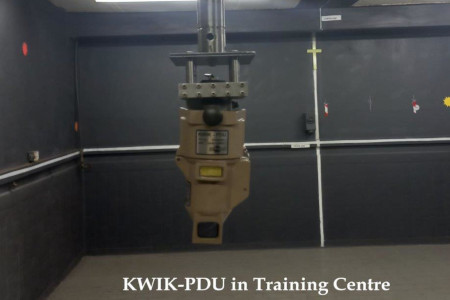

PUD on Rig

PDU on Rig

Highslide JS
Boom Configuration

Boom Configuration

Highslide JS
Developing Drill Patterns

Developing Drill Patterns

Highslide JS
Stoping Drill Patterns

Stoping Drill Patterns

Highslide JS

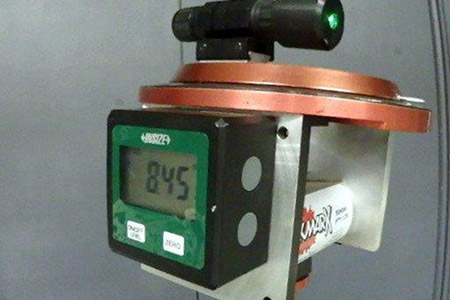

Kwik-Angle

Kwik-Angle

Highslide JS

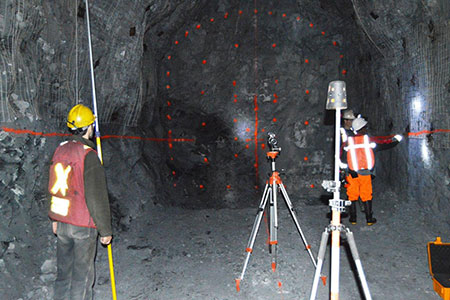

KINROSS KUPAL GOLD MINE, RUSSIA
Photographer: Vadim Guzanov.

KINROSS KUPAL GOLD MINE, RUSSIA
Photographer: Vadim Guzanov.

Highslide JS
KINROSS KUPAL GOLD MINE, RUSSIA
Photographer: Vadim Guzanov.

KINROSS KUPAL GOLD MINE, RUSSIA
Photographer: Vadim Guzanov.

Highslide JS
KINROSS KUPAL GOLD MINE, RUSSIA
Photographer: Vadim Guzanov.

KINROSS KUPAL GOLD MINE, RUSSIA
Photographer: Vadim Guzanov.

Highslide JS
KINROSS KUPAL GOLD MINE, RUSSIA
Photographer: Vadim Guzanov.

KINROSS KUPAL GOLD MINE, RUSSIA
Photographer: Vadim Guzanov.
